Visual presets is a way to triggers events, animations, and other changes in your Unreal Engine scene

Creating a Preset

A preset is the combination of a blueprint function or variable of an actor with a set value. These can then later be recalled very quickly from the preset panel on the right side

  • Select the "Preset Setup" tab

  • Select an actor

  • Select a blueprint function or variable in the middle pane

  • Enter in any parameters required for the function/variable.

  • Press "Execute" to see your changes live in the viewport

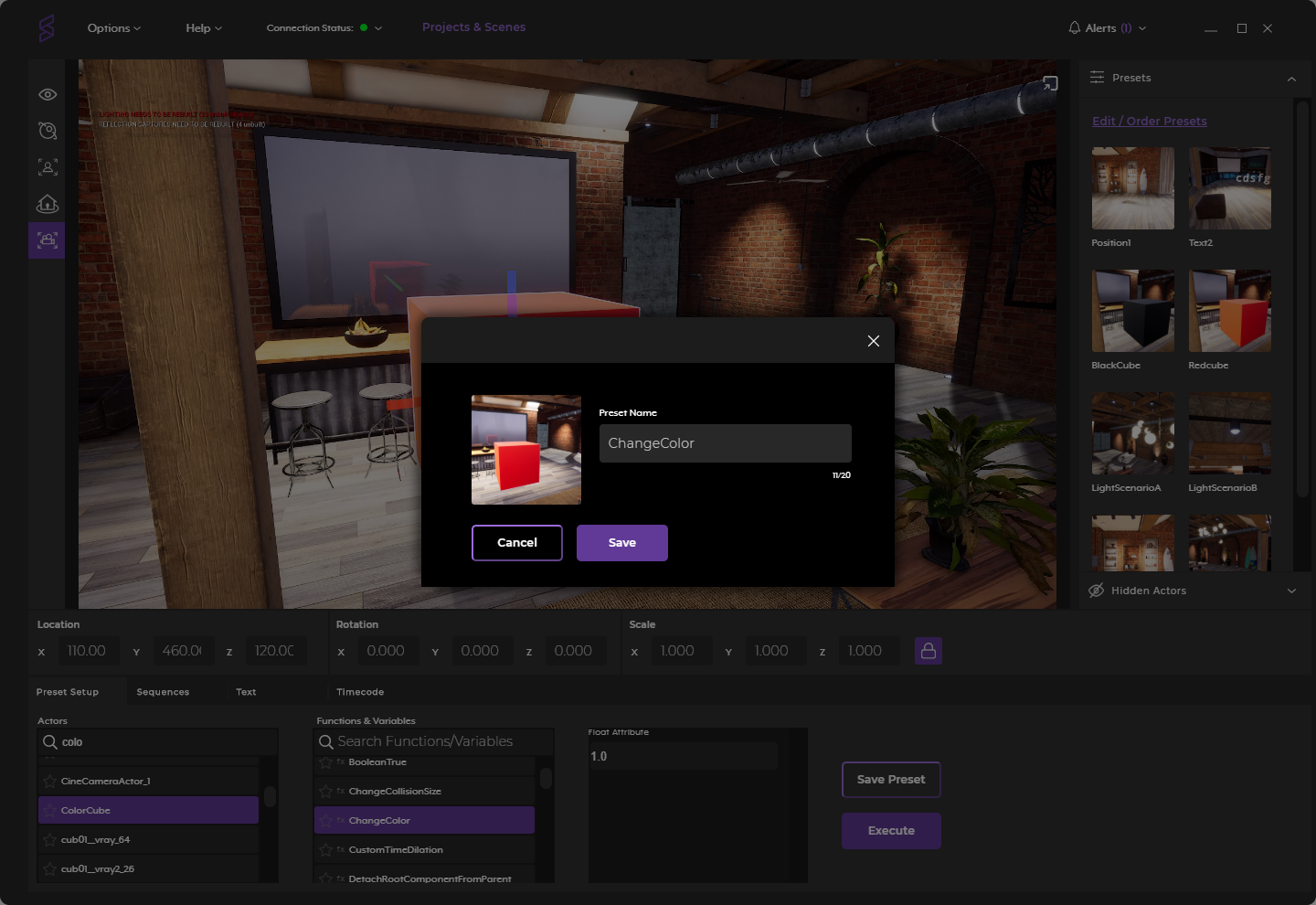

  • "Save as Preset" opens a new window where you can specify a preset name and replace the default image captured from the viewport.

  • Click Save and your Preset will now appear on the right side preset panel

Editing Presets

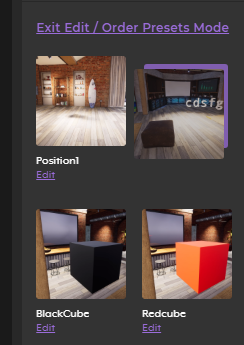

Presets can be edited, re-arranged & deleted by selecting "Edit/Order Preset" in the Preset panel

Presets can be re-arranged by selecting and dragging them.

Preset names can be changed, update thumbnails, and deleted by selecting edit.
